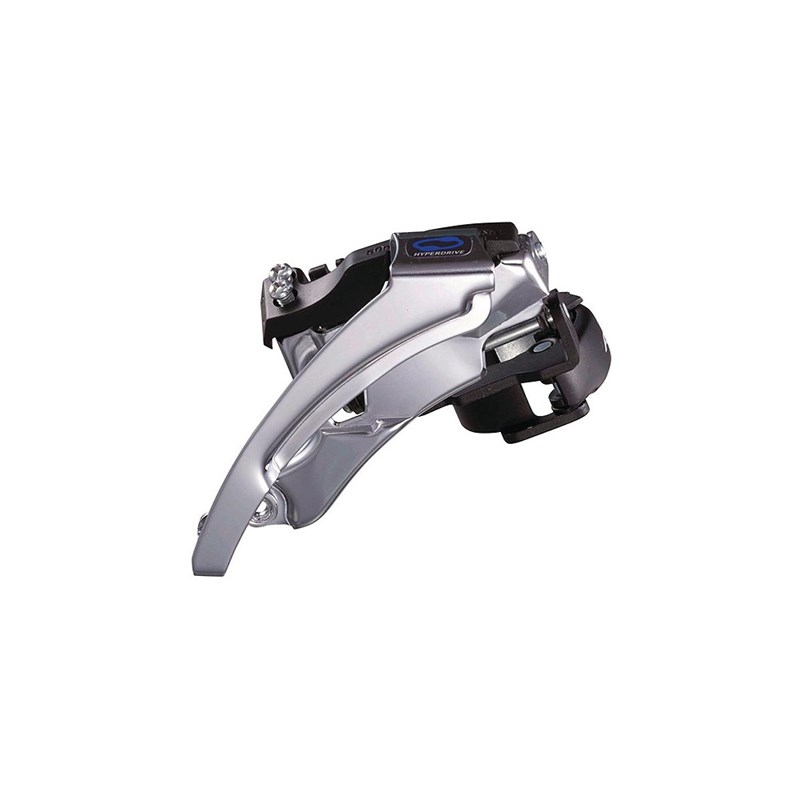

The Altus FD-M313 front derailleur offers the Dual-Pull technology, so the the shifting cable can be pulled from the top or from the bottom.
The front derailleur is featured with the wide link design for increased stiffness and durability.
The adapters allow the use with tube diameters of 28.6, 31.8mm and 34.9 mm. Chain line: 47.5 / 50mm.
Construction type/Clamp diameter: Clamp 28,6mm ||| Clamp 31,8mm ||| Clamp 34,9mm ||| Low Clamp
Material: chain guides: chromed steel
Product Name: Shimano Altus FD-M310 Top Swing Front Derailleur 3x6/7/8-speed
Manufacturer: Shimano Parts
Item Code: SHI220726
activity: Cycling
usage bikesport: MTB
groupset: Shimano
number of chainrings: 3
shifting system: 6-speed, 7-speed, 8-speed
shifting actuation: Mechanical
front derailleur type: Low Clamp
chain line: 47.5mm
front derailleur max. teeth: 48
cable pull: Dual Pull
front derailleur capacity: 20
chain stay angle: 66-69°
Model year: 2023
