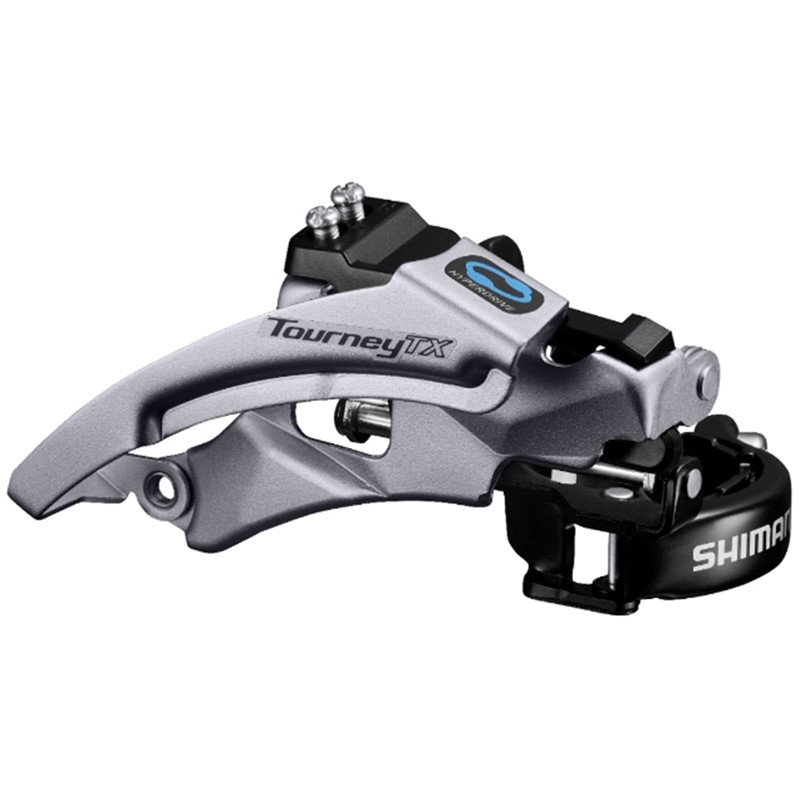

The SHIMANO TOURNEY TX800 front derailleur offers precise shifting with HYPERDRIVE technology for 3x8 speed drivetrains.
MODEL NO: FD-TX800-TS6
SERIES: TOURNEY TX800 Series
Color: Series color | Series color
Front speeds: 3
Rear speeds: 8/7/6 - 8/7/6
Compatible chain: HG 8/7/6-speed
Action|TOP SWING: ?
Mount|Clamp band (mm)|28.6: X (w/ S size adapter)
Mount|Clamp band (mm)|31.8: X (w/ M size adapter)
Mount|Clamp band (mm)|34.9: ?
Cable route type|Dual-pull: ?
Chain line (mm): 47.5/50 | 47.5/50
Chainstay angle (deg.): 66-69 | 66-69
Top gear teeth: 42T | 42T, 48T
Total capacity: 20T | 20T
Applicable top-mid tooth difference: 10T | 10T
Angled clamp band design: ?
